SINGLE SKIN PARTITIONING

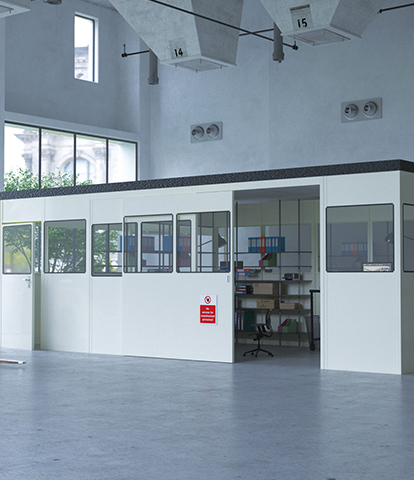

SOLID / GLAZED / SOLID ABOVE

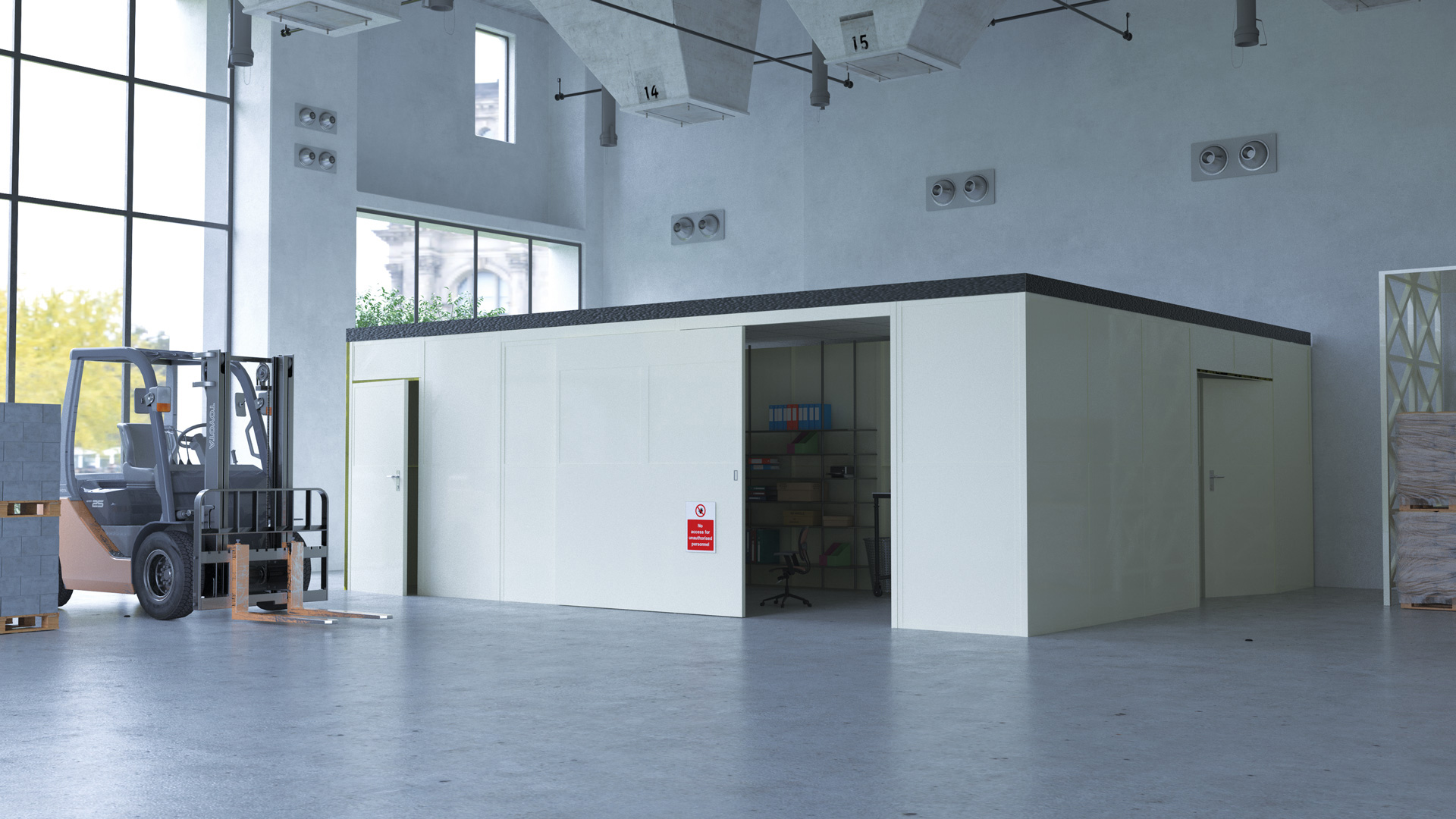

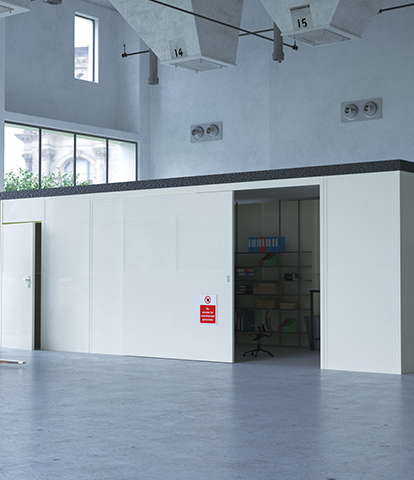

SOLID FULL HEIGHT

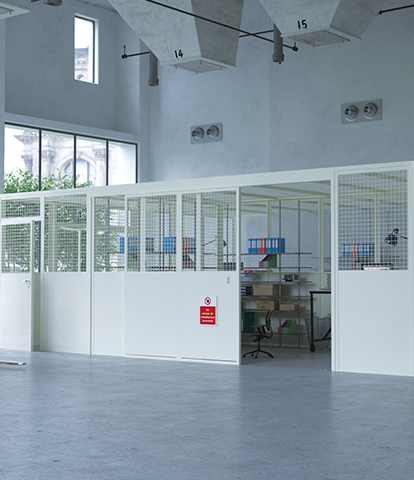

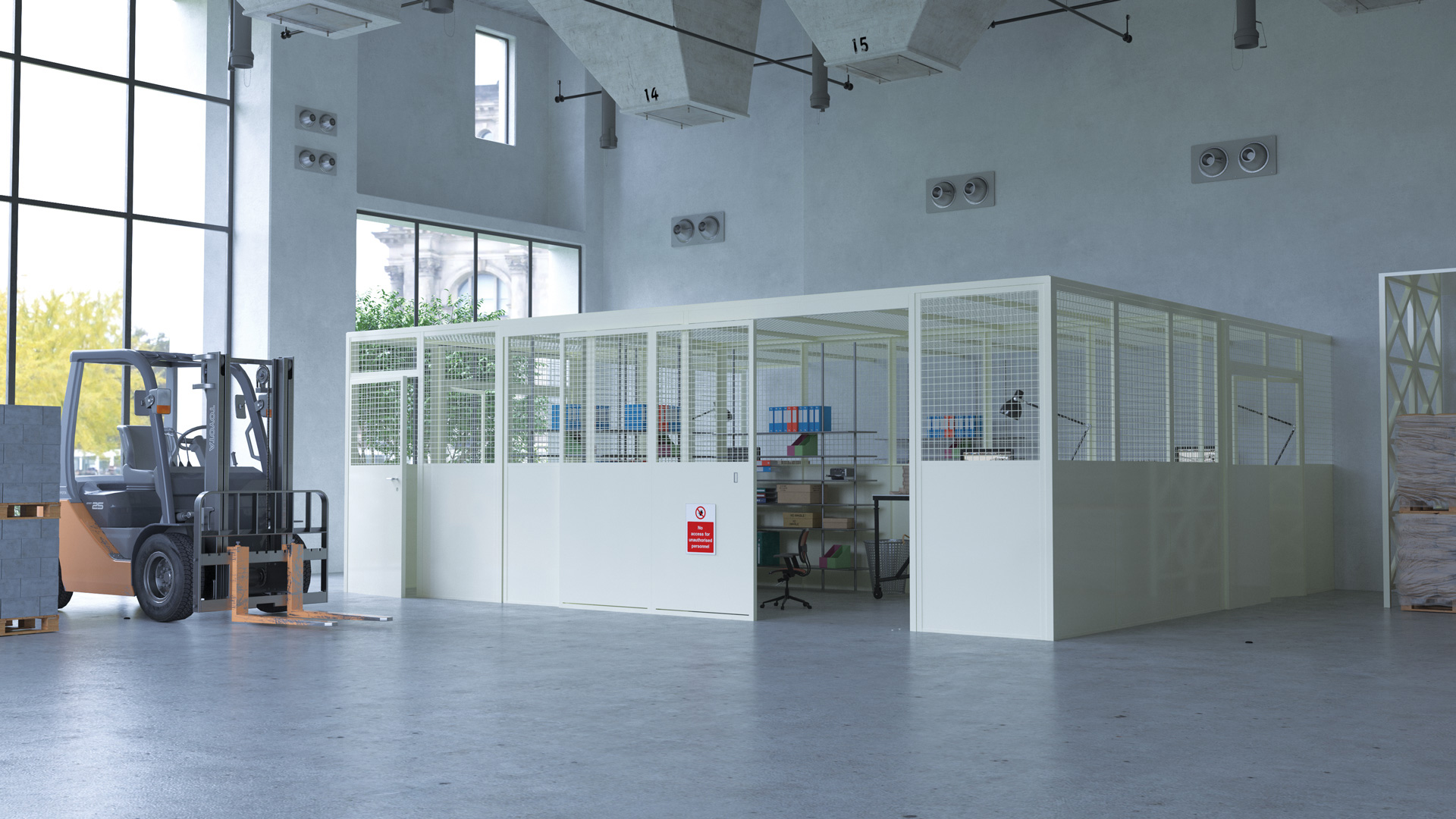

SOLID / MESH ABOVE

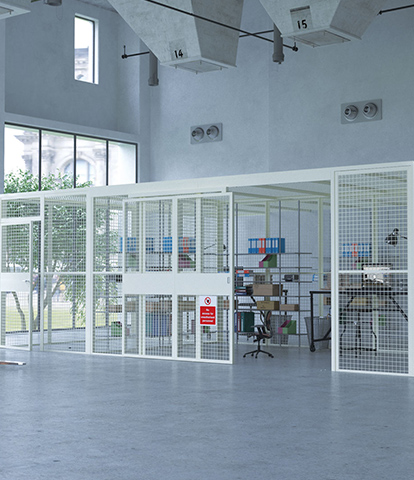

MESH FULL HEIGHT

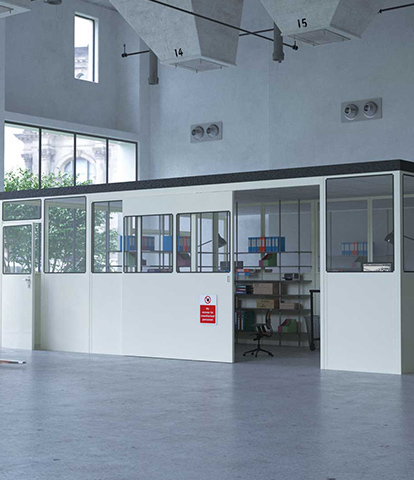

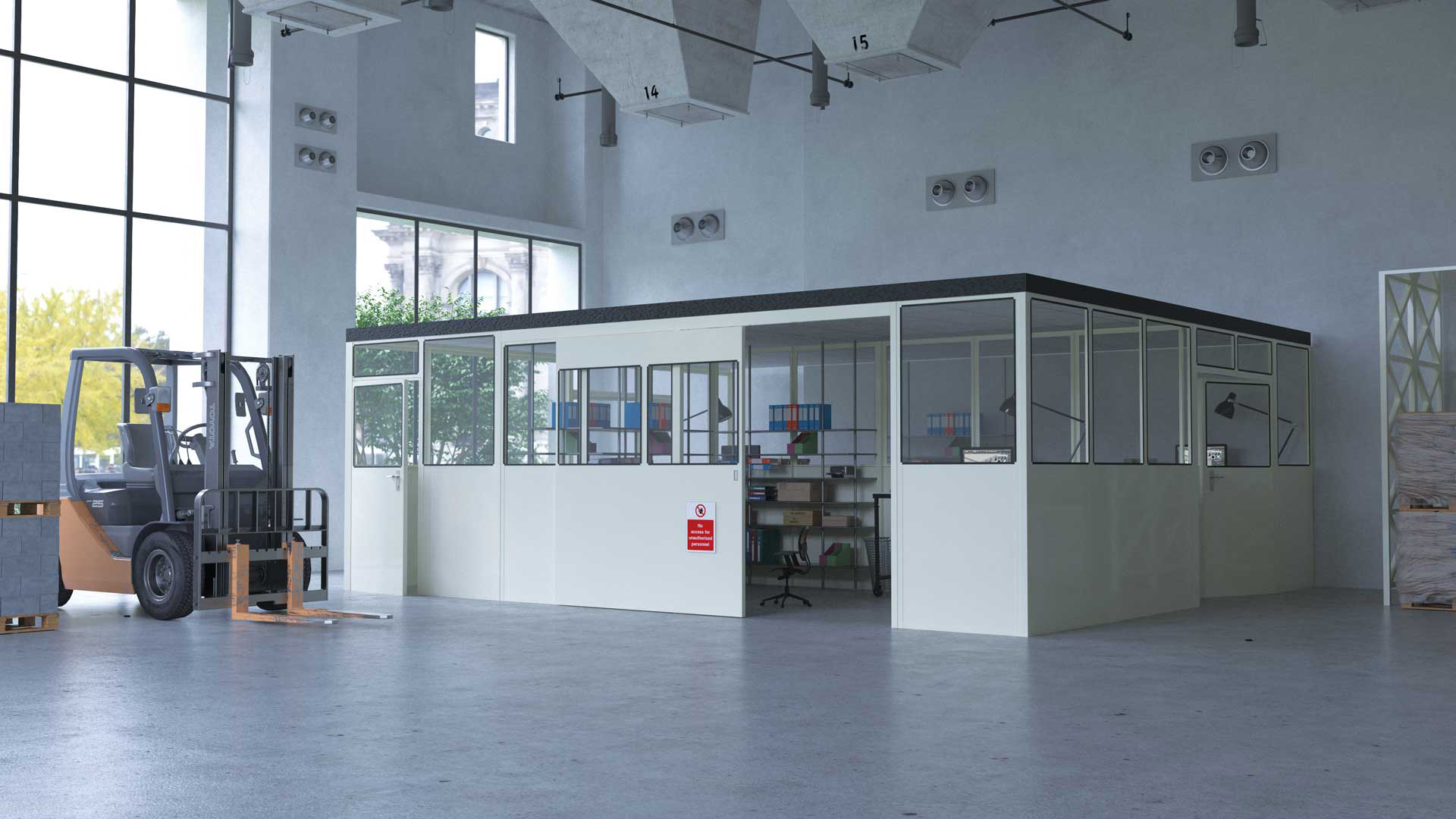

SOLID / GLAZED ABOVE
SINGLE SKIN PARTITIONING
An ideal solution where a high quality and cost effective partitioning system is required for separating work or storage areas.
SPECIFICATION
Panels are constructed from 43 x 43 x 1.2 mm (18g) cold-rolled angles and 32 x 32 x 0.7 mm (22g) cold-rolled T bars. Panels are available in solid, mesh or solid/glazed/solid elevations.
Choice of powder coated finishes.
Demountable and relocatable.
Ceiling solutions available to complement our partitioning.
STANDARD PANEL SIZES
Height
2,400, 2,700, 3,000 mm
Width
1,000 mm
Dado Height
1,200 mm
Thickness
43 mm
A range of infill and special sized panels can be supplied to achieve final dimensions.
Side hung and sliding door options available.
MULLION SIZES
50 x 50 x 2.5 mm
up to 2,700 mm high
80 x 40 x 2.5 mm
2,700 mm and above
100 x 50 x 3.0 mm
to suit installation
All Two-Way (intermediate) mullions have base plates for floor fixing. Knee braces and/or ladder mullions may be fitted for extra stability and strength.

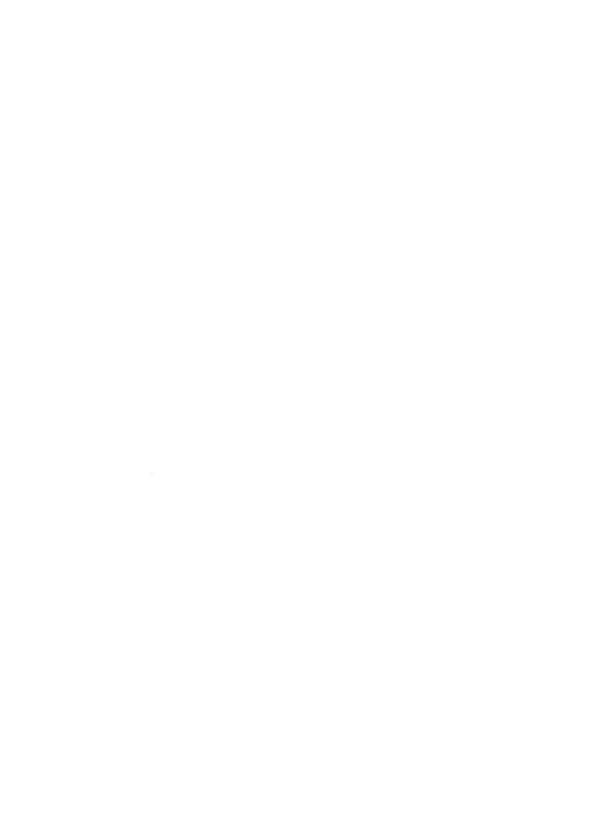

TYPICAL SINGLE SKIN FLOORPLAN LAYOUT
