Anti-collapse panels

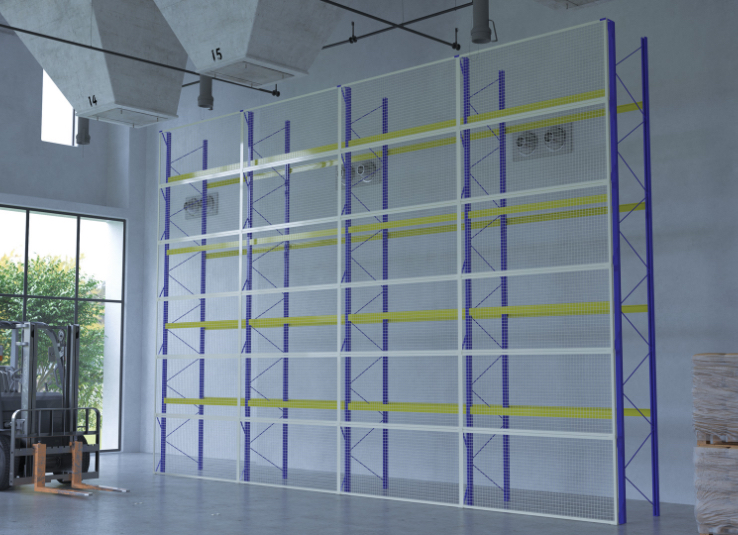

Anti-Collapse Panels

Designed as a mesh screen to clad pallet racking, and increase safety while handling pallets and palletised items.

Panels are constructed from cold-rolled angle and cold-rolled T-bar into which mesh sheets are spot-welded to give added strength and resistance to impact.

Manufactured to suit the racking bay centres, thus eliminating the need to cut and fabricate panels on site and are bolted together for added strength and rigidity.

Triangular stand-off brackets, which act as spacers between the racking and the mesh panels, can be made to suit customers’ requirements.

The intermediate brackets are reversible so that they do not interfere with the racking beams. Every installation is manufactured to fit each individual site, thus ensuring easy and fast installation time.

product specification

Angle Framework
43 x 43 x 1.2 mm
32 x 3x x 0.7 mm
Dado Mesh Sheets
75 x 75 x 3 mm
Stand-off Bracket
75 to 350 mm deep
Standard Panel
1,245 mm high
Powder-coated to match or contrast with the racking system
