Partition wall kit




Light weight, quick fitting demountable partition wall kit.

Modular design allows layout flexibility and can be installed by a single person.

Reduction in installation time saves you time, money and labour.

Available with different wall finishes to match the interior of the building.

Supplied in kit form or individual components to satisfy bespoke layouts.

Crash Barriers
A standard partition wall kit can be constructed into a 3000mm wide x 2400mm tall wall.

The wall panels are supplied pre-finished to match the building interior.

The door frame is fully assembled with a pre-hung light oak hollow core door and fitted with a 3 lever lock. Door handle is supplied loose which is fitted during installation.

Also included are all the necessary aluminium extrusions to install the wall.

All aluminium profiles are white powder coat paint finish.

Other colours (RAL standard) are available upon request.

Partition kit comprises:




1 x door kit, 834mm overall frame width for a 762mm wide door.

Door finish: light oak, other finishes available upon request.

Door size: 762mm, 838mm and 914mm wide x 1981mm high x 35mm thick.

1 x Ceiling channel. 3000mm long.


2 x Wall channels. 2400mm long.


1 x Jointing channel. 2400mm long.


2 x Floor angle. 2500mm long.

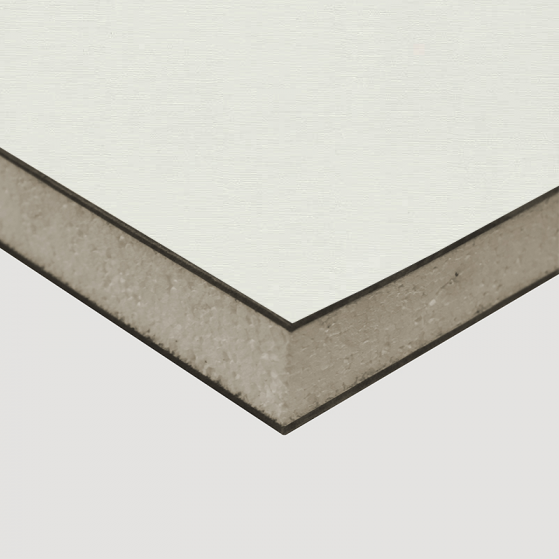

2 x Wall panels each 1220x2440mmx44mm.

Choice of panel finish:




Wilkins white


White plaster


Grey plaster


White linen


Grey speckle


Cotton ‘e’


CSM-10


EBG-10


Custom
